BANDI, a joint development project for
Korea’s offshore small nuclear power plant system
KEPCO E&C’s Small Modular Reactor
View interactive contentKorea’s offshore small nuclear power plant system, BANDI

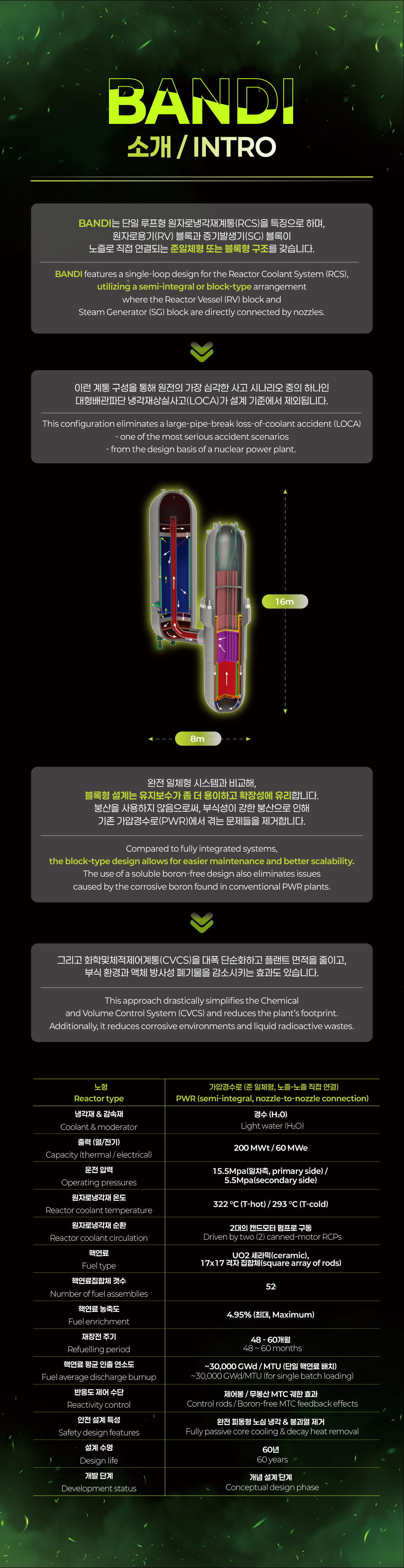

BANDI is KEPCO E&C's brand for SMRs and equates to the term for “tiny fireflies” in Korean, with their characteristic light green light that twinkles in the dark in a tranquil forest on a mid-summer night. BANDI is a small nuclear reactor plant with a thermal output of 200 MW and an electricity output of 60 MW that can generate the energy needed for electricity and heating free of GHG emissions in remote areas such as small cities, isolated islands, and deserts. KEPCO E&C is developing the technology by utilizing proven technology in commercial power plants as much as possible. Instead of competing with large nuclear reactor or thermal power plants that are more suitable for large power grids, we identify and target differentiated niche markets such as distributed power sources, district heating, seawater desalination, and nuclear-renewable energy hybrid systems.
Nuclear reactor
Block-type pressurized water reactor

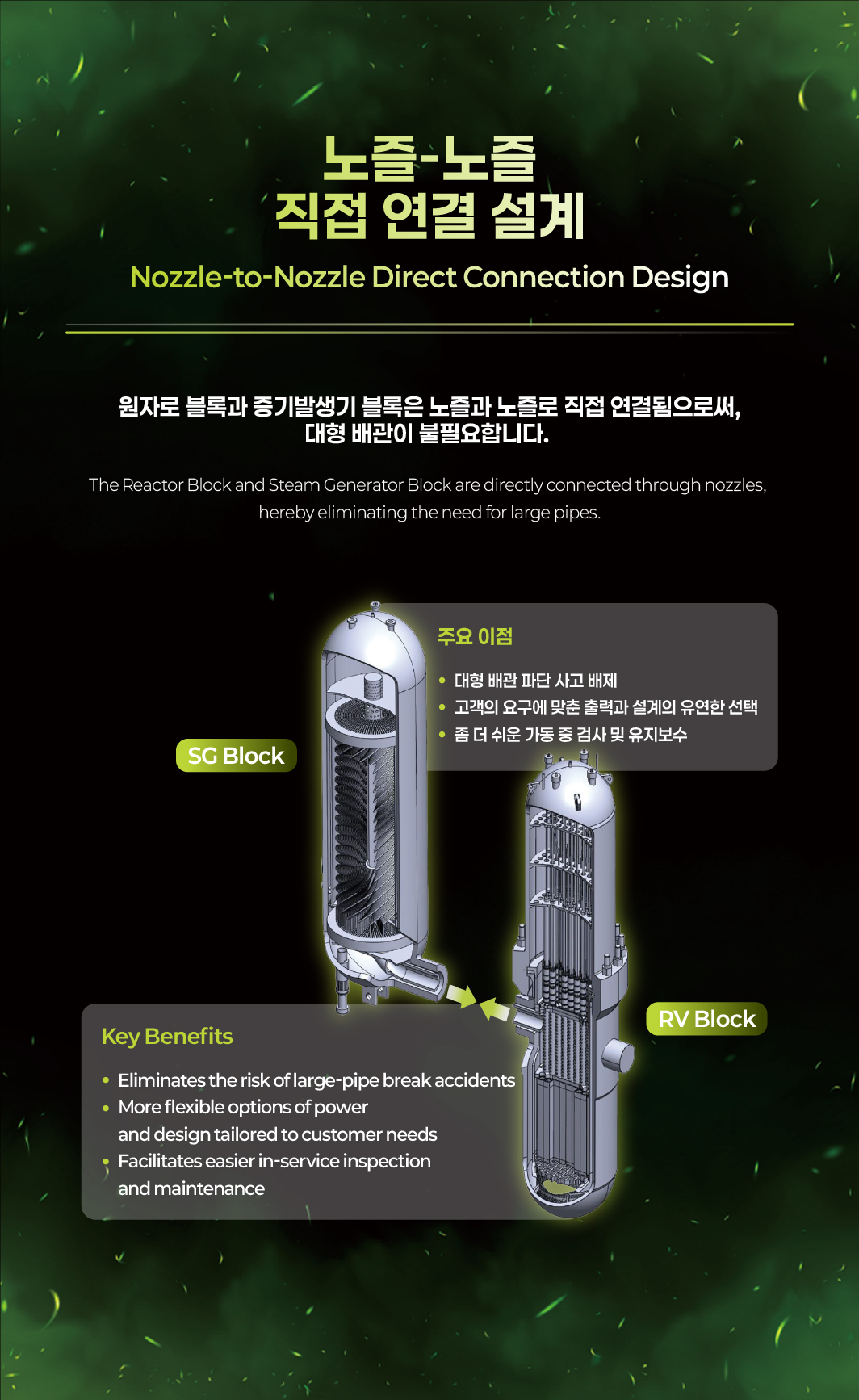

(direct connection of nozzles)
Output (thermal/electrical)
200 MWt/ 60MWe
Nuclear fuel & core
17x17 rods, ≤5% UO2 reload cycle 4-5 years

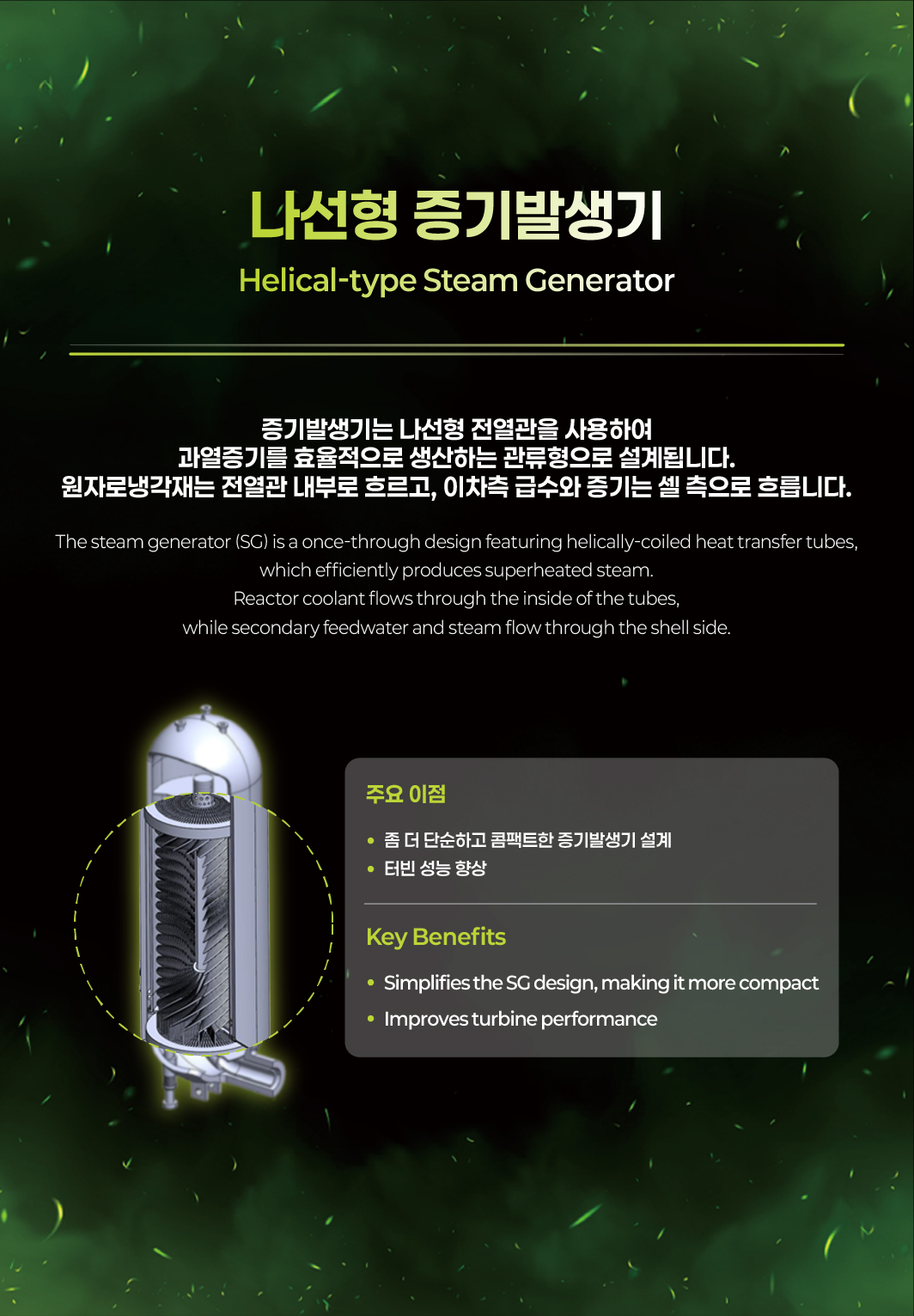

Steam generator
Once-through, superheated steam

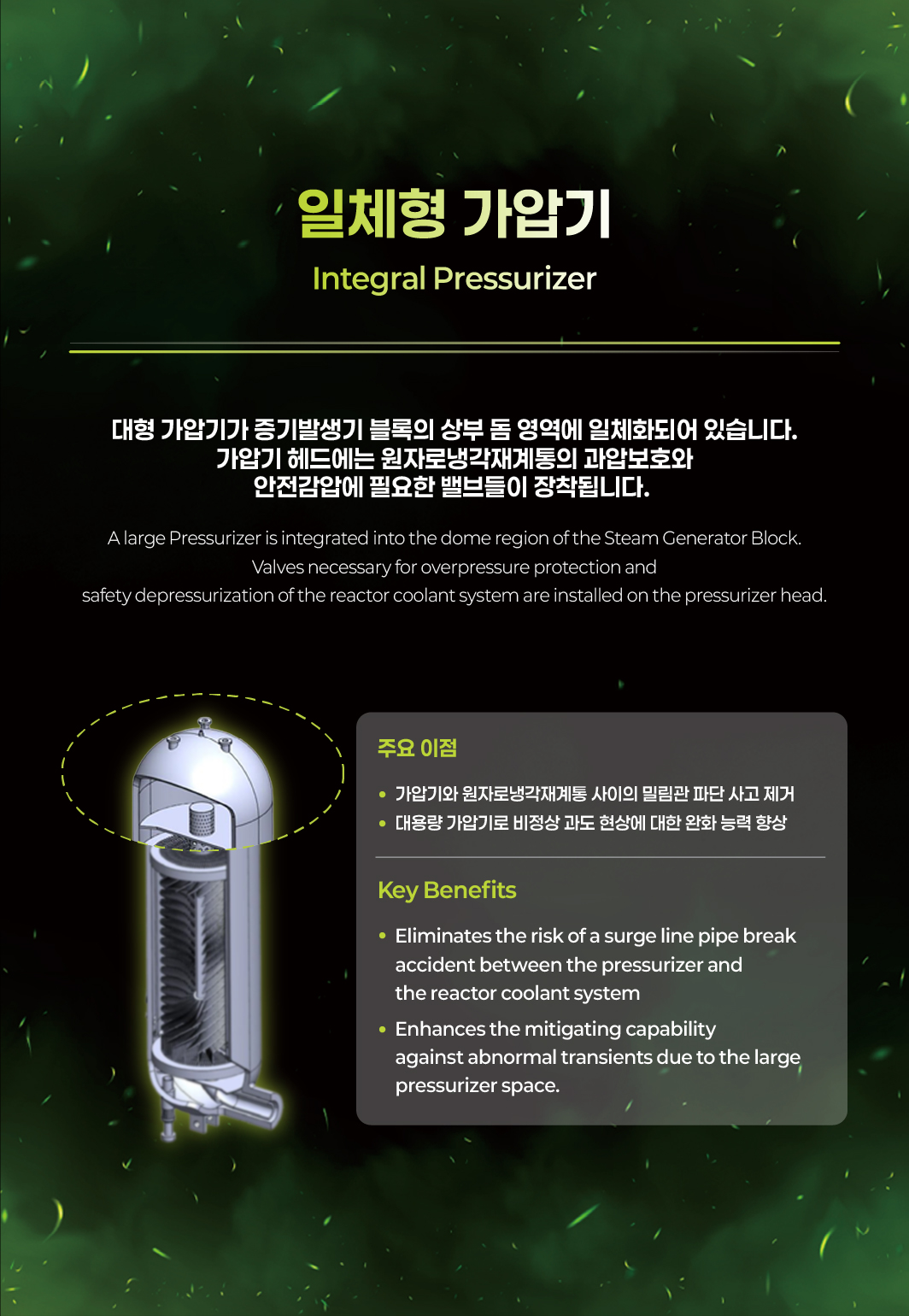

Pressurizer
Steam, integrated type (SG block)
Coolant pump

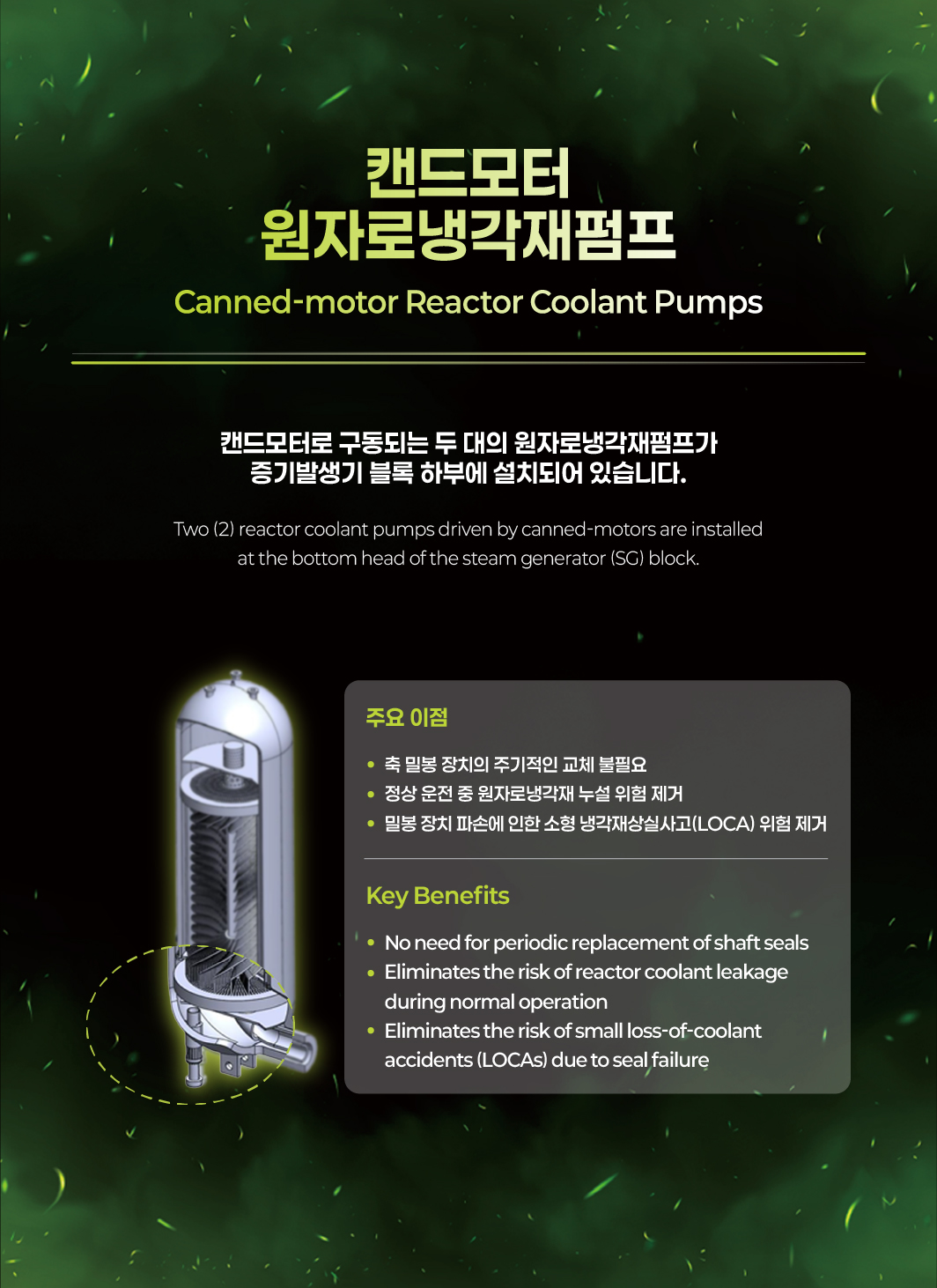

Canned motor (SG block)
Reflection of the marine environment
6 degrees of freedom gradient fluctuation
Design life
60 years
Contribution to 2050 carbon neutrality through sustainable development
Electricity that each BANDI can supply
60 Mwe, enough electricity for 150,000 households
Carbon dioxide emitted by BANDI
10 g, carbon dioxide emissions equivalent to 1% of coal-fired power generation
(Coal 991g, LNG 549g, solar power 54g)
Large-scale technological convergence of nuclear energy with shipbuilding & marine industries
Paradigm shift
- Red Ocean -> Blue Ocean
- Fast follower -> First mover advantage
Development of a floating marine nuclear power system
- Efforts to expand consensus
Status of Bandi Technology Development
2018
- Two-loop

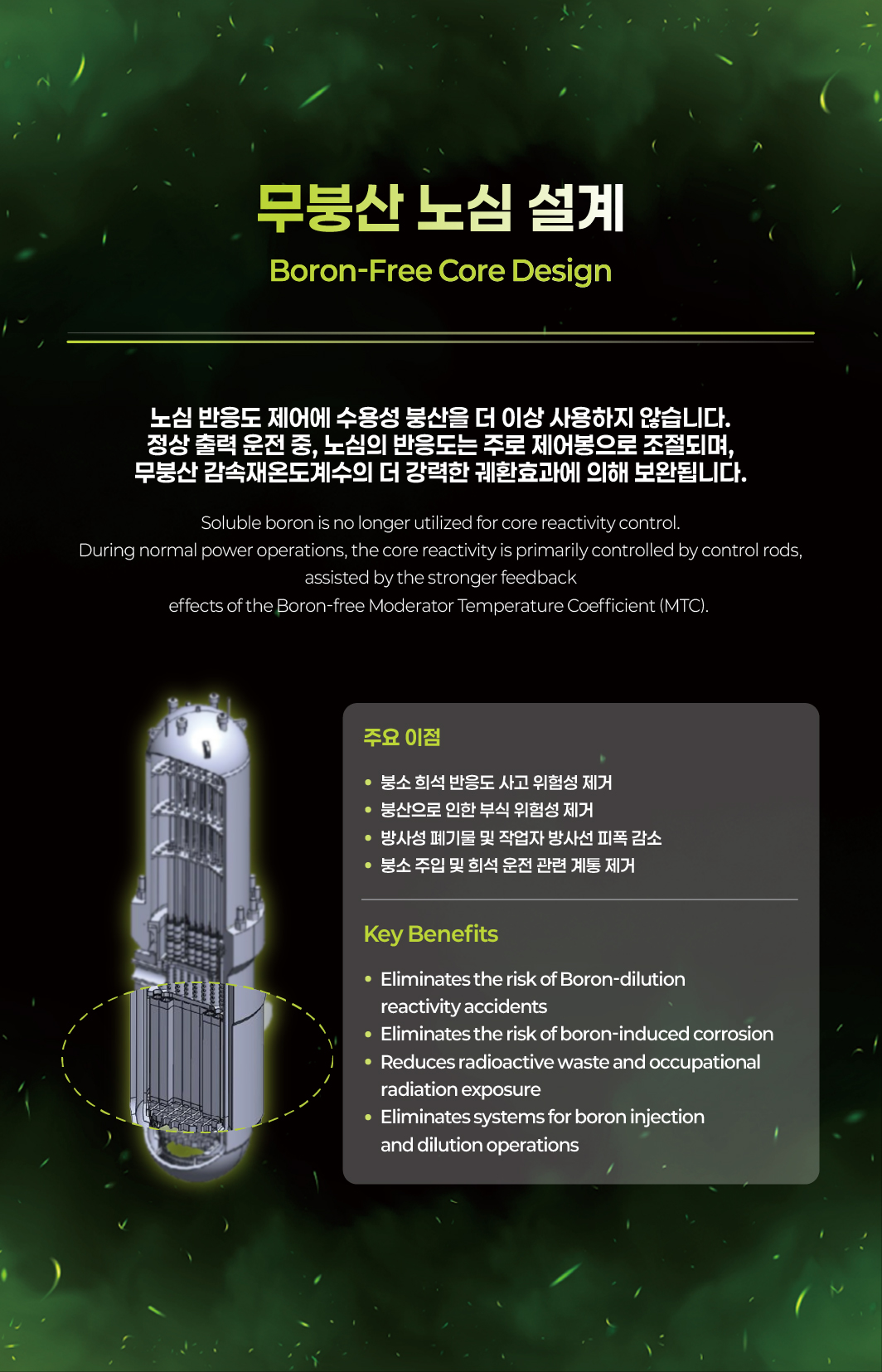

- Baron free
- RCP : Integrated to SG block
- SG : Superheated steam
2020
- Two-loop
- Baron free

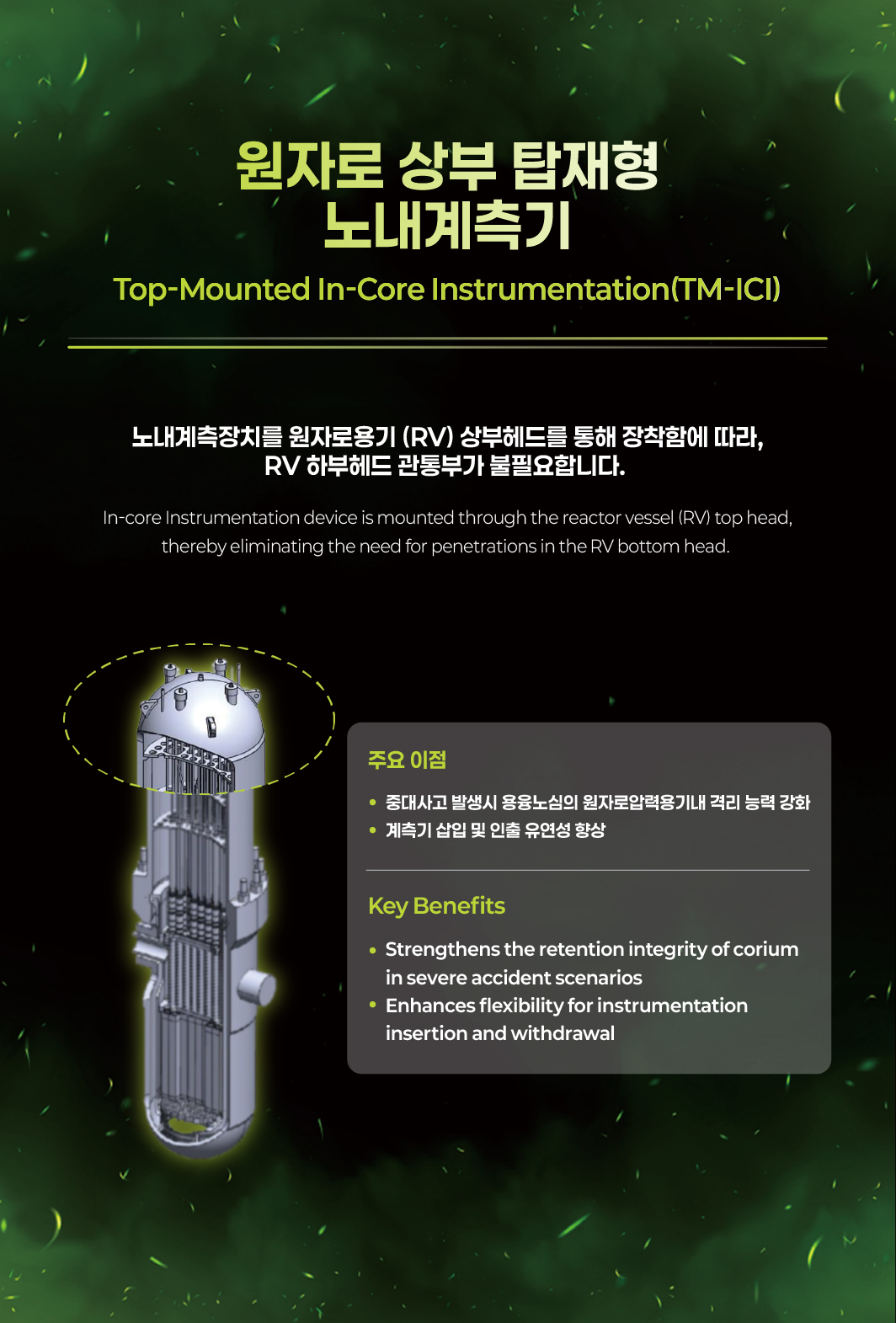

- ICI : Top-mounted
- RCP : SG block Integrated
- SG : Saturated steam

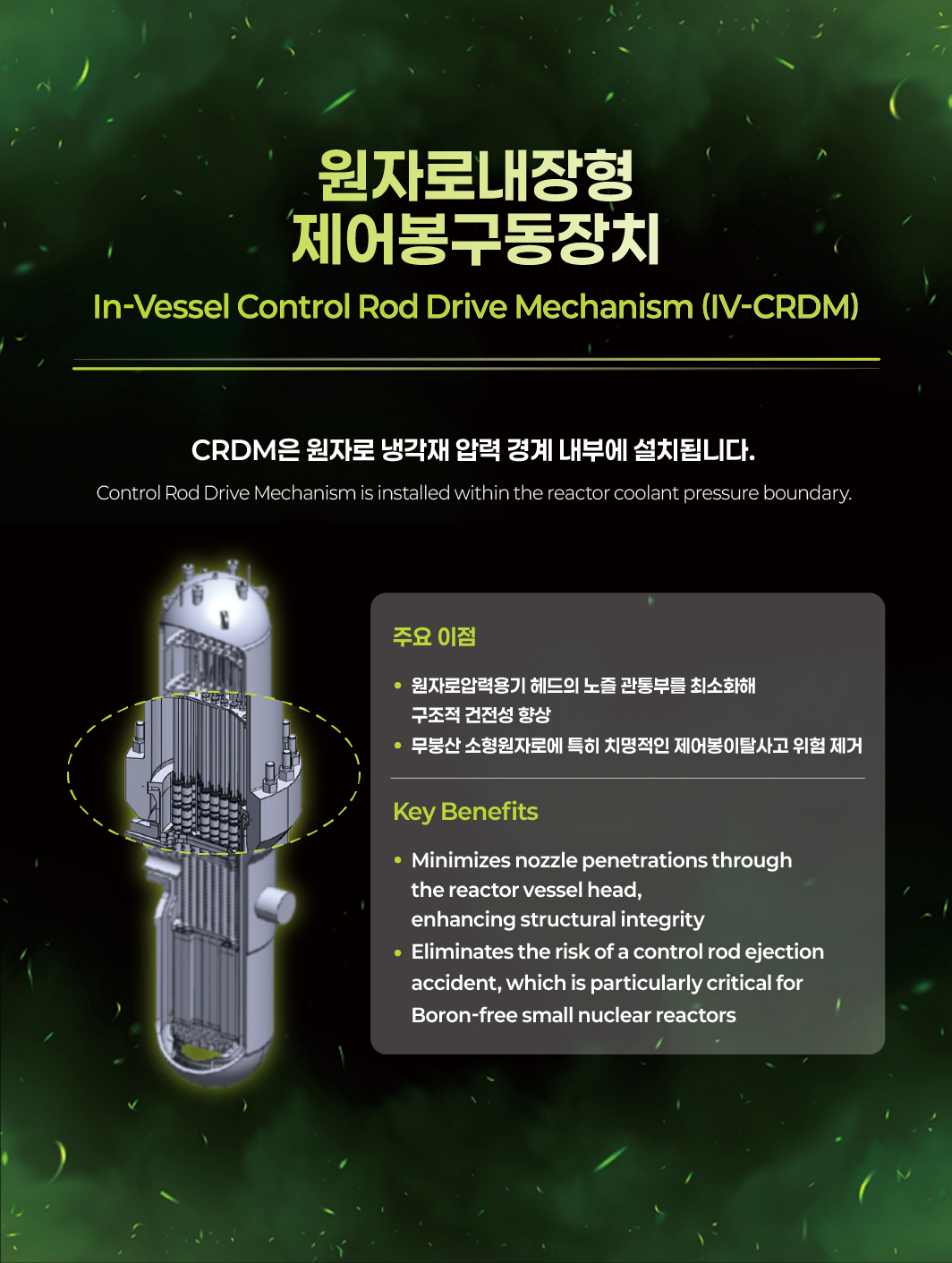

- CEDM : Integrated to RV block
- PZR : Integrated to RV block
2022
- One-loop
- Boron free
- ICI : Top-mounted
- RCP : Integrated to SG block
- SG : Superheated steam
- CEDM : Interated to RV block
- PZR : Integrated to SG block
Mid- to Long-term Roadmap for BANDI
TRL3
TRL5
TRL6
TRL7
Conceptual design (2 years)
2023 - 2024
Basic design (3 years)
2025 - 2027
Standard design & licensing (5 years)
2028 - 2032
TRL(Technical Readiness Level)
